1.F00VC05008 Injector Steel Ball Parts List
| NO. | 1 | 2 | 3 |
| Picture |  |
 |
/ |

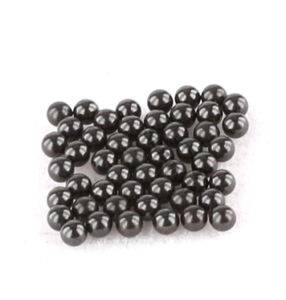

| Name | Injector Steel Ball Assembly | White Anti-Rust Bag | / |
| Description | Injector steel ball part number: F00VC05008 | Prevent Injector Steel Balls From Rusting | / |
2.F00VC05008 Injector Steel Ball Installation Precautions
(1) The replacement of the injector steel ballmust strictly follow the electrical system, the approved pressure of the low-pressure fuel intake system, the approved pressure of the high-pressure fuel circuit system, and fuel system replacement consumables requirements (including the low-pressure fuel circuit system filter and the high-pressure fuel circuit) specified in the vehicle engine maintenance manual.
(2) Replacement of wearing parts of the fuel system, cleaning requirements for the connection between the fuel system and the injector steel ball, the fitting clearance of the injector steel ballconnection, the installation angle and tightening torque of the injector steel ball, the fitting clearance of the intake system, and the fitting clearance of the exhaust system to ensure the service life of the engine and the normal operation of the injector steel ball.
(3) When installing the injector steel ballon the engine, it is necessary to clean the engine block, cylinder head and other parts connected to the injector steel ball, and ensure that there is no dust, carbon deposits, water, rust spots, etc.
(4) Before installing, check whether the injector steel ballwasher shim has been replaced and installed on the injector steel ball.
(5) When installing the injector steel ball, apply lubricant between the injector steel ball, fuel nozzle sealing washer shim and O-ring.
(6) Without replacing new washer shim can lead to: deformation of the tight cap of nozzle, deformation of nozzle, deformation of nozzle orifice, oil leakage and air leakage, which will cause serious damage to the injector steel balland nozzle to break and cause damage to the engine.
(7) When installing the injector steel ballon the engine, please carefully check the components related to the installation of the injector steel ball, such as the injector steel ball pressure plate, screw, injector steel ball rod and other accessories are not deformed, and install it in strict accordance with the operation steps of the engine maintenance manual.
(8) It is forbidden to operate the bare injector steel ballfor a long time in an environment with serious dust pollution and corrosion to iron products.
(9) It is forbidden to operate the bare injector steel ballfor a long time in a strong magnetic field environment.
